Dimensions are transcribed from the supplied 2025 catalogue. Final model selection, compatibility and drawings require technical confirmation before ordering.
Application category

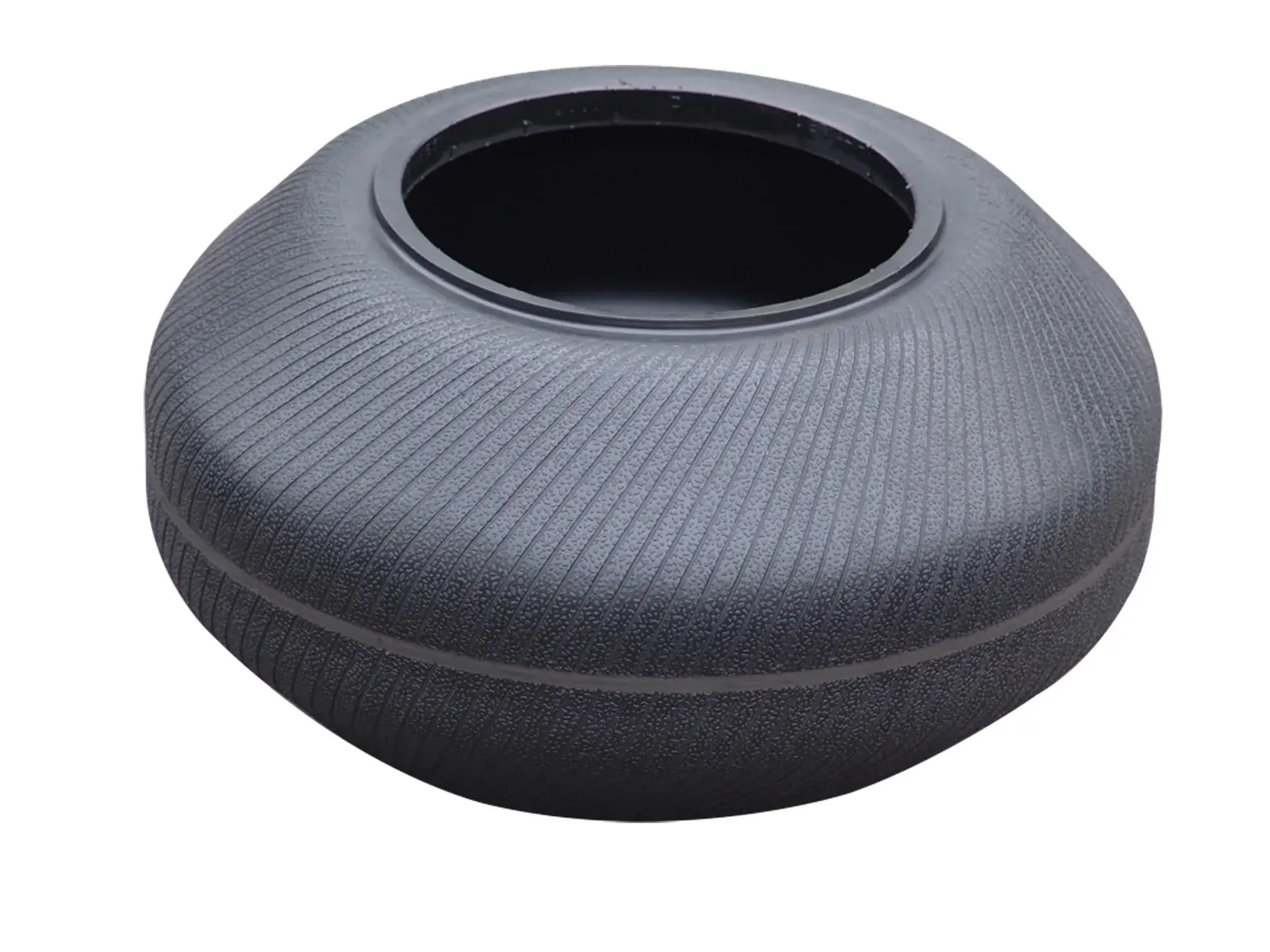

Bias Tire Curing Bladders
Structure type
Type B
Reference tire size
Contact us for details
Source technical data
| Foot Inner Diameter | 267 mm |
|---|---|
| Foot Height | 22 mm |
| Foot Width | 13.5 mm |
| Foot Gauge | 8 mm |
| Central Gauge | 6 mm |
| Outside Diameter | 431 mm |
| Overall Height | 400 mm |
| Effective Periphery | 434 mm |
| Etching Pattern | 1# |
