Dimensions are transcribed from the supplied 2025 catalogue. Final model selection, compatibility and drawings require technical confirmation before ordering.
Application category

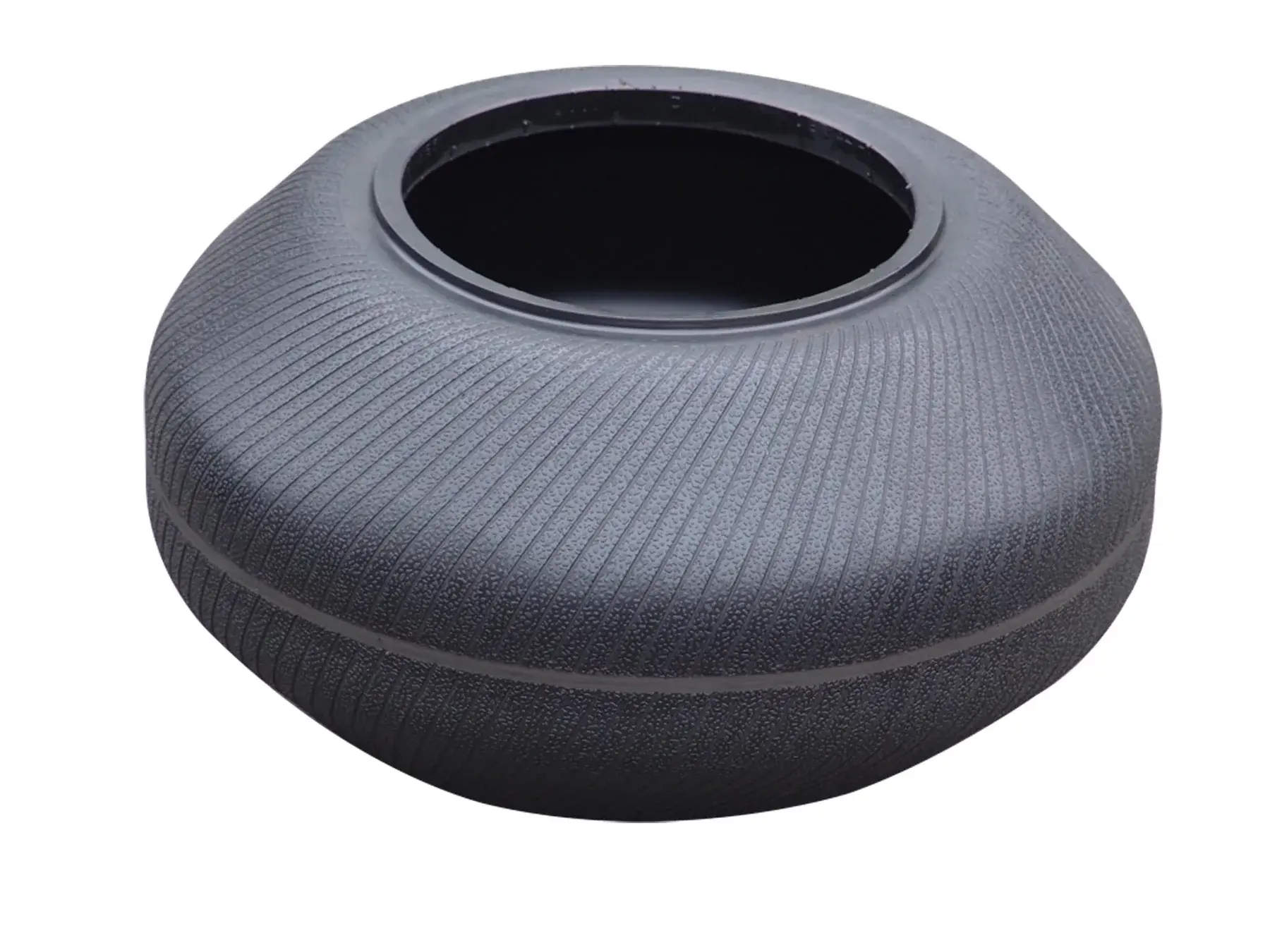

Motorcycle Tire Curing Bladders
Structure type
Type B
Reference tire size
3.50-10
Source technical data
| Foot Inner Diameter | 188 mm |
|---|---|
| Foot Height | 20 mm |
| Foot Width | 8 mm |
| Foot Gauge | 8 mm |
| Central Gauge | 5 mm |
| Outside Diameter | 270 mm |
| Overall Height | 226 mm |
| Effective Periphery | 228 mm |
| Etching Pattern | 2# |
Related product references
More models in MOTO
Related listings share an application category; this does not confirm interchangeability or compatibility.
